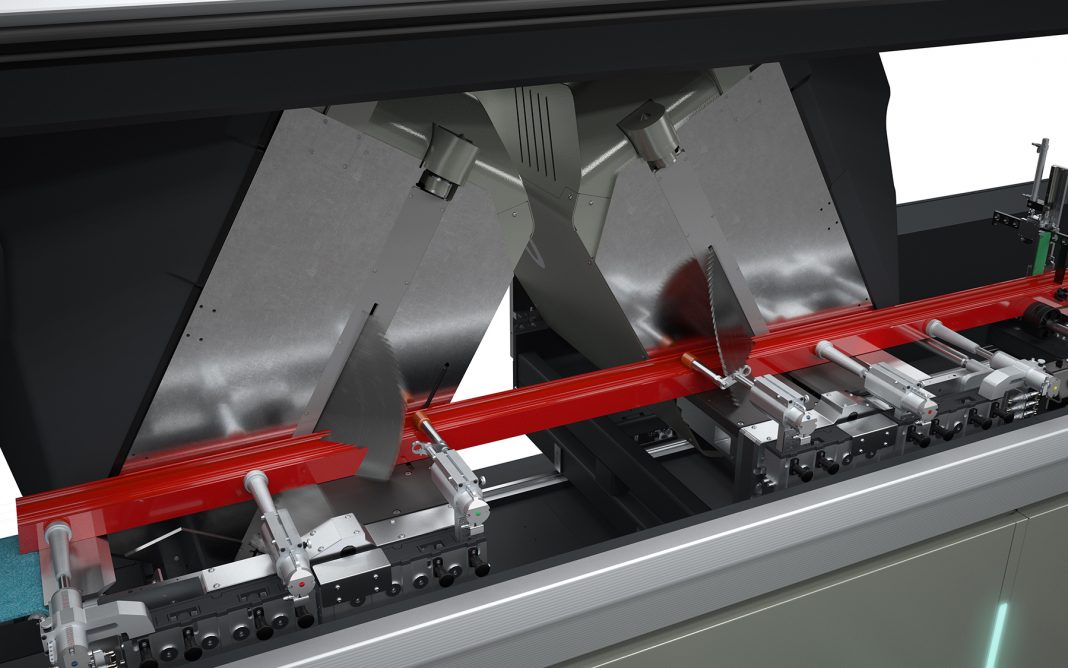

Emmegi’s Compound Cut 9-axis twin head saw has been given a redesign and upgrade, with new electronics and safety features added.
The new Compound Cut has 600mm wide blades which move in two directions. On the horizontal axis, it can cut from 45° inwards to 22°30’ outwards and on the vertical axis it can cut from 0° to 45°. The movement of each blade is controlled via a combination of high precision gear motor and brushless motor with absolute encoder.
For fabricators of curtain walling, the size and scale of the saw and the blade feed on two axes means it can cut profiles up to 525mm high and 225mm wide, with optimal adjustment of both the blade stroke and exit speed.
The 4+4+1 clamp set-up provides for maximum stability to deliver an extremely precise cut. If special cuts are required, users can opt for a system of patented clamp devices which allow for vertical clamping. There is also a roller conveyor on the middle head for standard loading and unloading and pneumatic supports for smooth operation.
