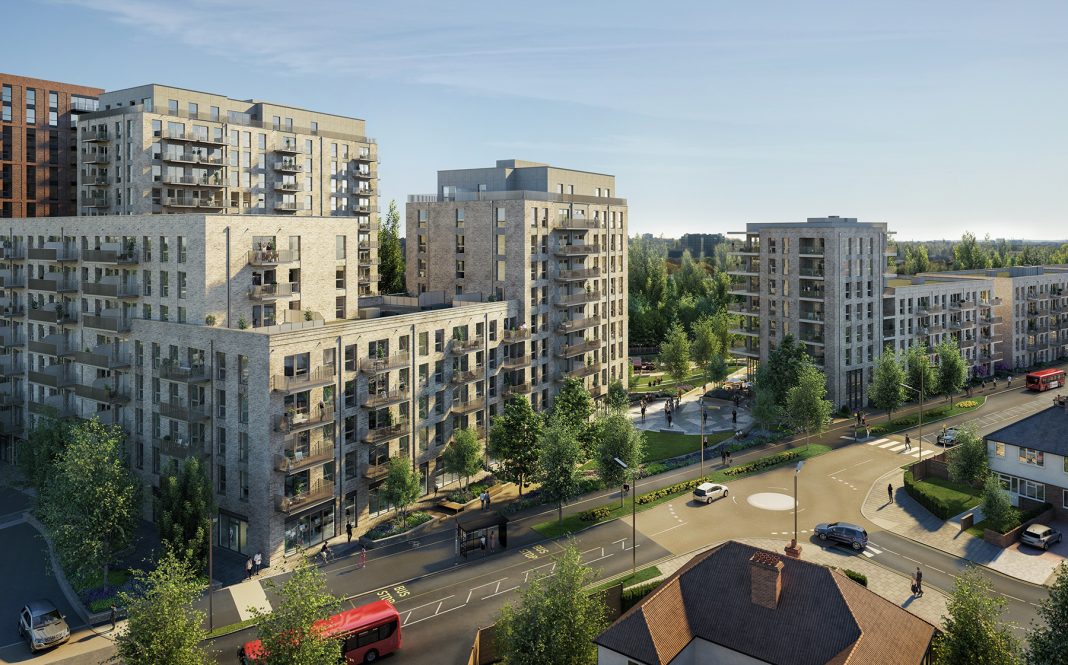

Nearly 1,400 windows and doors were supplied by Deceuninck fabricator Fastframe working with approved installer APW Glazing in a £2million-plus contract for Affinity House, the first phase of the Grand Union development in Alperton, Northwest London.
Designed by architect, Building Design Partnership, for main developer St George, a member of the Berkeley Group, Affinity House is located in 11 acres overlooking the historic Grand Union Canal.
The Grand Union Development, which is set to transform a previously derelict 22-acre site, will create more than 3,000 new homes with close transport links to Central London, a mix of community facilities and 135,000ft2 of flexible workspace.
For the 146 1,2 and 3 bed apartments of Affinity House, Fastframe manufactured a combination of Deceuninck’s contemporary 5000 Series Linktrusion doors and Fully Reversible Windows (FRW), finished in Decoroc Balmoral Grey on white.
Deceuninck’s Fully Reversible Window comes as standard with PAS24 accreditation and achieves Class A4, 600Pa Air Permeability; Class E1050 water tightness and Class AE2400 PA wind resistance. It can be manufactured as a single opening window to a maximum size of 1,400mm x 1,400mm and delivers U values of 1.3 double glazed and 0.96 triple glazed.
The 5000 Series is available in a suite of Tilt and Turn, residential door and French Door options. Compatible with Linktrusion technology, the 5000 Series offers maximum door frame sizes of 2,500mm x 2,200mm.
Linktrusion, which is suitable for commercial and residential applications, combines glass fibre reinforced PVC profiles and an extruded reinforcement profile with embedded steel wires in a low density insulating foam core. As a result, windows manufactured using Linktrusion are as strong as steel reinforced windows but are 30% more thermally efficient with 40% savings on materials and weight. They are also 100% recyclable.
Decoroc, which is applied by Fastframe in-house on its £150,000 paint line, produces a, matt finish in a range of RAL colours and comes with a 10-year guarantee.
“The door heights at Affinity House were 2,400mm, which would normally have required a steel reinforced PVC product or a more expensive aluminium solution,” said Fastframe commercial director, Paul Moody.
“With Deceuninck’s Linktrusion technology we were able to manufacture the 5000 Series system to the required sizes without the need for traditional steel reinforcement.
“Combined with the flush finish Fully Reversible Windows, and the Decoroc coating system, the finished result delivered all the aesthetics of aluminium, at a lower cost, and with all the performance advantages typically associated with PVC.”
Deceuninck head of commercial sales John Duckworth concluded: “Grand Union is a landmark project for London and one of the highest profile developments in the country. As phase one, Affinity House presented a number of complex technical specifications with additional on-site challenges due to Covid.
“Fastframe, which has a deserved reputation as one of the UK’s leading commercial fabricators, has done an outstanding job of overcoming those challenges and is now in an ideal position to tender for the next phases of the development as a result.”
