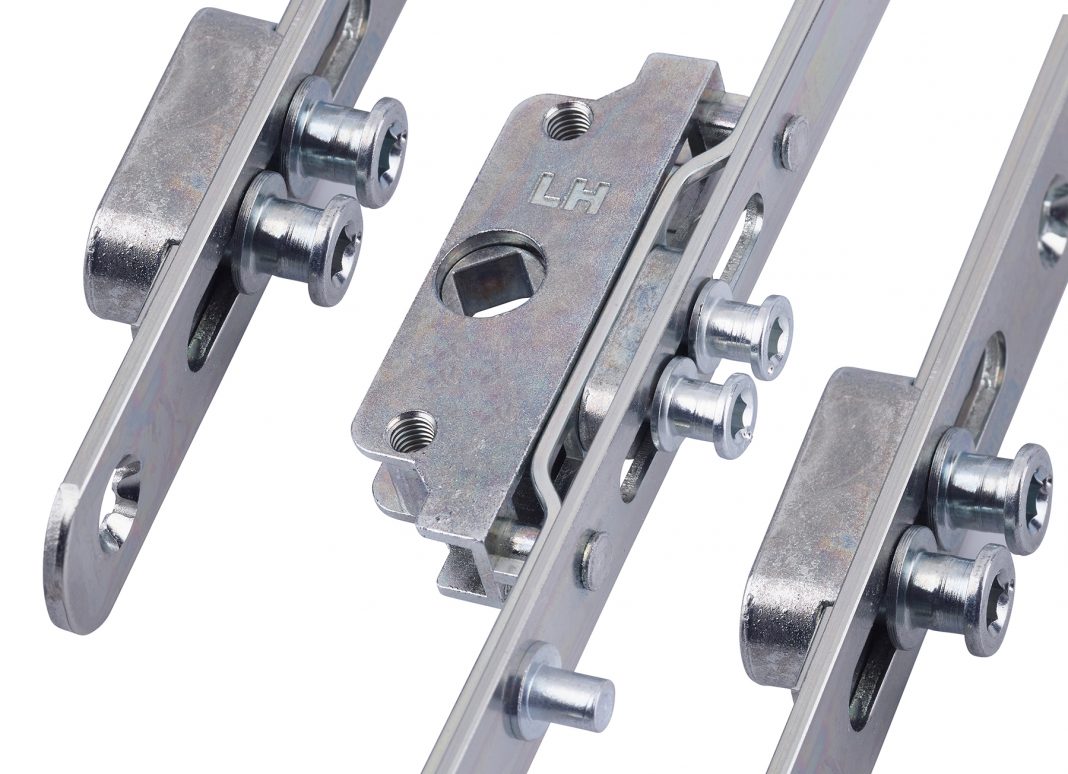

Era has introduced a new Double Cam Window Lock said to simplify fabrication and installation.

Exceeding PAS 24 requirements, the Double Cam Window Lock features up to three sets of unidirectional double locking cams. The lock’s design also features a “Super Keep” that is combined with a central anti-lift fixed pin to prevent jemmying attacks on the window and eliminates the need for shootbolts. The keep’s wrap around reinforced steel top plate and composite underbelly deliver four-point fixing for additional security, whilst using minimal components for clean window aesthetics.

Product manager James Wilson said: “The new Era Double Cam Window Lock provides a shootbolt free PAS 24 solution on a simple cost-effective platform designed to benefit fabricators, installers and homeowners alike.”

The new Double Cam Window Lock is available in six different bar sizes, from 230mm up to 1200mm and a choice of a 20mm or 22mm backset with standard 66mm gearbox routing.

Supplied with a 10 year mechanical guarantee and backed by Era’s Total Security Guarantee, the lock has been performance tested to 30,000 cycles, 240 hour corrosion resistance, and in-situ lock and keep combinations to 3KN force.
