Fulmar and Teal, Greenwich Peninsula
21st February 2017

Curtain walling, window and door fabricator and installer GLASSOLUTIONS has completed an extensive project for Kier Construction as part of the latest transformational development on east London’s Greenwich Peninsula.

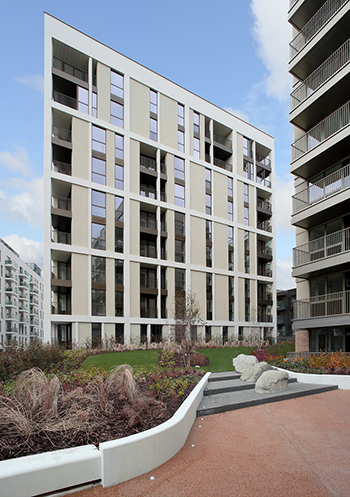

The Fulmar and Teal is a residential-led mixed use development on the Lower Riverside district of Greenwich Peninsula, close to the O2 Arena and Canary Wharf. It includes 139 homes in a mix of private, intermediate and social rent tenures across the three buildings, plus 218m2 of retail/commercial space, a car park and bicycle storage area.

Working to a design by architects DSDHA, Glassolutions was appointed by main contractor Kier Construction to deliver all curtain walling, windows and doors for the external envelope of The Fulmar’s three blocks, the tallest of which is ten storeys.

In proposing a combination of Wicona aluminium systems integrating with insulating glass units, spandrels and sandwich panels, Glassolutions was able to meet the brief whilst meeting a number of key design factors. These included a maximum pressure in ‘general wind zone’ of 1,200 kN/m2 and air permeability of 3m3/hr/m2 at a test pressure of 600 Pa.

The ‘stick’ curtain walling was fabricated using the range of Wicona Wintec 50 systems, which provide a 50mm face width. Integrated with the curtain wall structure are windows created using the Wicline 75 Evo concealed sash system.

A variety of door types were required, with Wictec 50 and Wicstyle 75 evo systems applied to manufacture hinged doors and swing doors accordingly. Ground floor doors were designed to comply with the RC2 European security standard. Lifting sliding doors feature throughout the development which the company manufactured using the Wicslide 160 system. All the doors are fully complementary in terms of aesthetics and performance.

GLASSOLUTIONS’ IGU specification also addresses sound reduction with acoustic insulation delivering a maximum Rw rating of 36dB (weighted noise reduction).

The outer pane is 6mm SGG Securit, a thermally toughened safety glass, with the inner pane being an 8.8mm combination of SGG Stadip Protect and Planitherm One. The units feature a 90% argon fill 16mm cavity with a black warm edge spacer bar and polysulphide seals. This delivers a U-value of 1.0 W/m2K and a g-value of 0.49 or 0.51 for those units featuring a satin finish.

Spandrels are configured in a 6-16-6 unit, with 6mm SGG Security glass again used on the outer pane and the same cavity, fill and spacer bar and the vision units. The inner pane is a 6mm SGG Emalit glass with 60mm foil backed insulation, a configuration that delivers a U-value 0.45 W/m2K.
