Higher speed twin head
10th July 2018

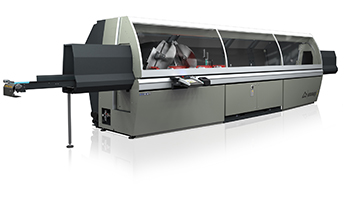

A new high speed version of the Precision RS twin head saw is now available from EMMEGI (UK).

Previewed at Fensterbau in March, the new Precision HS has a X axis positioning speed of 35m/min, compared with 25m/min on the standard Precision RS. It can also be specified with a 50m/min axis positioning speed for even faster performance.

With five NC axes for cutting aluminium and PVC, the twin head saw on the HS has two 600mm cemented carbide blades capable of cutting from 45° to 157.5° with a resolution of 280 positions per degree. In standard feed mode, the machine can cut profiles up to 450mm high while in radial mode, it can mitre cut at 45° on profiles up to 240mm wide. The blade feed is controlled by two NC axes to ensure optimal adjustment of the blades’ exit speed and stroke.

The movement of the mobile head, the angle of the saws and the cutting operations are all automatically controlled, and the machine uses a linear magnetic measuring system to achieve precision positioning and profile clamping without the need for axis referencing.

The blade rotation speed is fully adjustable as well, and it can be supplied with a roller conveyor on the mobile head for standard feeding and unloading, or on the fixed head for feeding from the left-hand side as required.

www.emmegi.com
