Going Up
5th September 2017

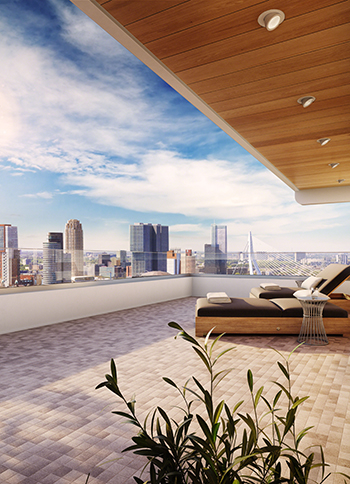

Easy Glass Up, a glass railing system especially designed for straightforward installation on low parapet walls round terraces, balconies and walkways has been launched by
Q-RAILING.

It features an 80 mm high base shoe which helps to maximize the view.

Easy Glass Up includes a Safety Wedge system which speeds up the mounting of glass panels. Also, the entire installation process can be carried out from inside the parapet, eliminating the need for scaffolding.

A balustrade created with Up can withstand line loads of 0.74 kN/m when installed with glass 16.76 mm thick and 800 mm high. General manager Bruce Bradshaw said: “It has been extensively tested and successfully certified against multiple national quality and safety marks, including AbP, statische Berechnung gemäß DIN 18008, NTC 2008, CTE, BS 6180 and SIA.”

The system can accommodate glass from 12 mm - 17.52 mm thick, and up to 800 mm high. The system includes a top-mount base shoe (custom-bent on request), two 90° connectors and matching end caps. The aluminium profile has a RAL 9006 silver powder coated finish, so no additional cladding is necessary. Q-railing’s range of cap rails, u-profiles or the sleek Edge Protection profiles can also add a distinctive touch to Up railings.

www.q-railing.com
