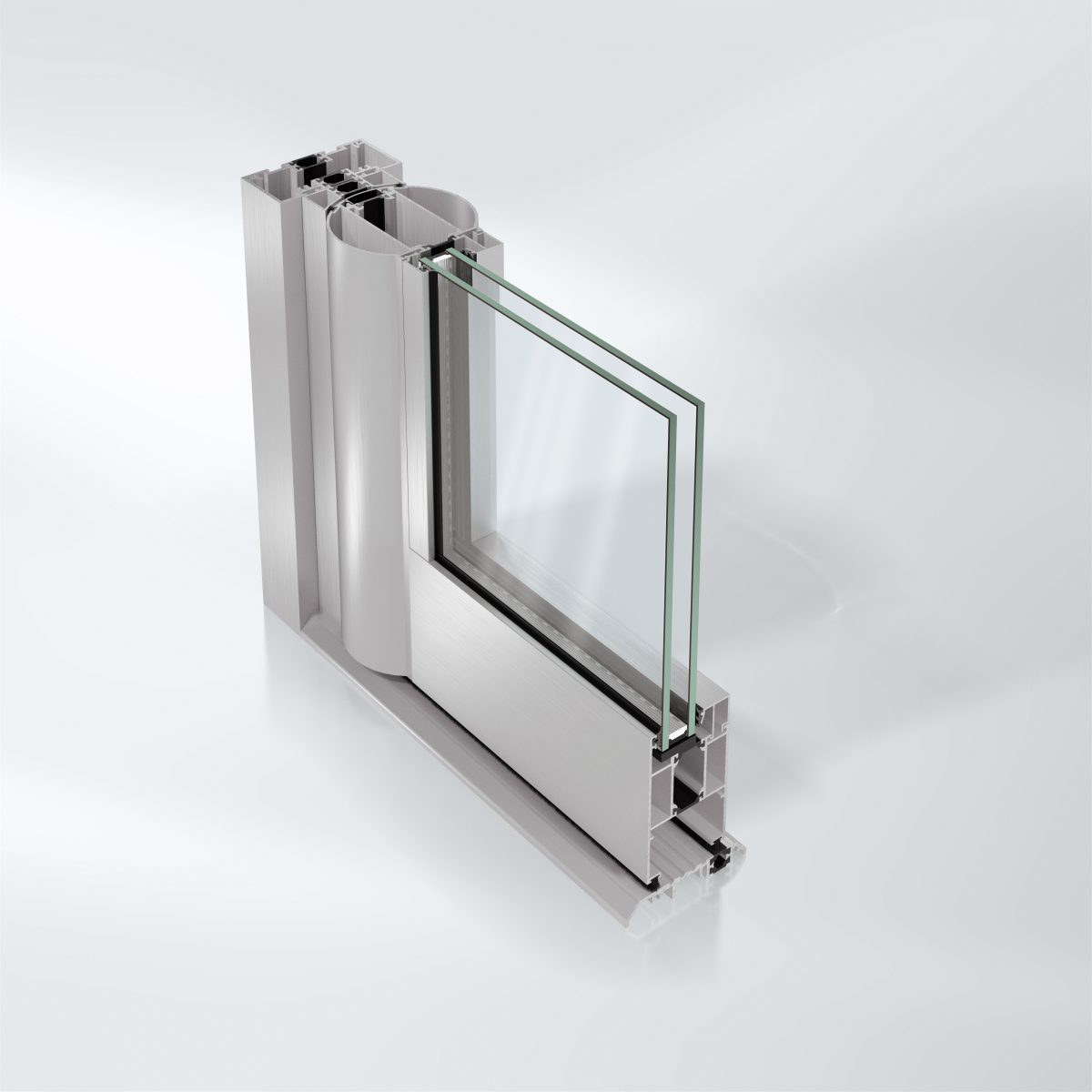

SCHÜCO UK has launched an integrated Ground-Floor Treatment (GFT) solution based on a thermally broken pivot door and screen with an overall basic depth of 65 mm.
The system is compatible with the Schüco FWS façade range and the Schüco AWS 70 SC window system.
Product Manager Stephen Jeffries said :”Through conversations with our customers we spotted the need for a highly durable and easy to fabricate GFT system that would surpass the often extreme demands of education and commercial buildings.
“Now there is a GFT system that is both easy to fabricate and highly durable, but also comes with the added back-up and support of Schüco UK.”
The ADS 65 pivot door, which may be single- or double-leafed, with a maximum leaf size of 1.1 m x 2.5 m and a leaf weight of 110 kg, is cleated and further reinforced with optional tie-rods top and bottom.
The door can be specified with an anti-finger trap profile feature and a choice of locking options. Burglar resistance is certified to PAS 24 across all locking configurations.
The system is fully compliant with The Equality Act 2010 with a 1100 mm maximum door width and specific reduced operating force closer options.
